specialized turbo vado 2.0 electric bike

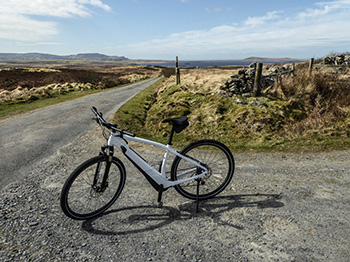

specialized turbo vado

i have long thought that the electric bicycle, or e-bike was marketed to the wrong audience. pretty much all the cyclists i know use cycling either as a means of getting or keeping fit, or for more pro-active sporting endeavours. the notion that their velocipedes be augmented with a smidgeon of electrical power would rather undermine the inherent joy of the bicycle. advertising the e-bike to such an audience would surely be to miss the point?

better, it would appear, to aim all that copywriting at the moped market, those who look upon the bicycle as simply an alternative - albeit economic - means of commuting. aside from one or two drop-bar aberrations, that appears to be the more current thinking and probably not before time.

specialized turbo vado

nonetheless, i feel it's worth my pointing out that i do not consider myself in any way the sort of cyclist who might be thought of as an e-bike customer. however, in the interests of proving that assertion, even if only to myself, i was more than happy to accept an offer from the specialized bicycle company to conduct a review of their turbo vado e-bike. the model under consideration sits comfortably at the bottom of the specialized urban range web page, priced at £2,600 and available in both gents' and ladies' versions.

specialized turbo vado

like many e-bikes, the turbo vado employs the pedal-assist means of propulsion; to be ridiculously obvious, unless you actually pedal, the bike remains stationary. and unlike other models with which i have had brief dalliance, there is no 'throttle' that will enable the bike to travel independently of pedalling input.

unlike regular bicycles, an electric bicycle has arguably less need to proffer metallic or carbon resilience, the sort of spring in its step that excites the pedalling aficionado. because in an electrically powered bicycle, the principal impetus of movement arrives via the electric motor concealed (or otherwise) about its person. a previous experience of an electrically powered bicycle was on a faux mountain bike in which the motor was fitted to the rear wheel. the specialized turbo vado, more sensibly in my view, houses the 250w, belt-drive motor in what we once referred to as the bottom bracket. there, it is strategically placed not only to provide a sturdy centre of gravity, but also to provide the pedal assist that ensures the rider has to shoulder at least some of the effort.

specialized turbo vado

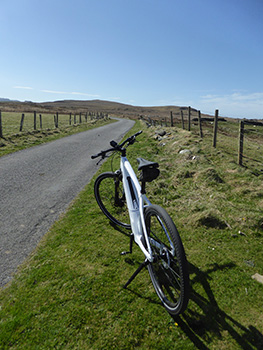

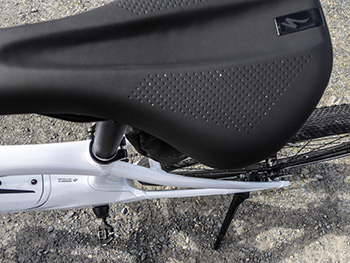

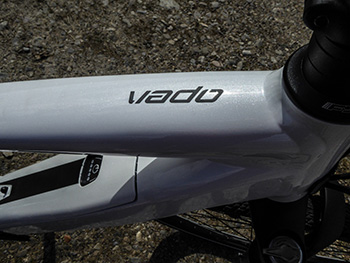

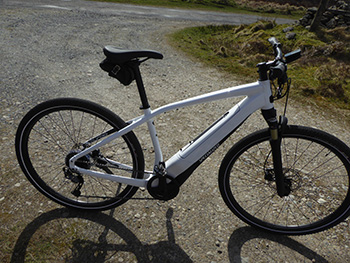

classified under the heading of urban e-bikes the vado's substantial frame is basically constructed from aluminium, though it features a healthy dollop of plastic within that colossal downtube (the word seems barely adequate) where the battery sits in silence. the top tube is heavily sloped towards the seatstays, joining each other at the top of a seat tube which kinks as it disappears inside the enormous bottom bracket region. those seatstays effectvely curve back towards the aforementioned bottom bracket, becoming chainstays in the process.

specialized turbo vado

the battery is built to slot (almost) seamlessly into its pre-ordained slot on the left side of the downtube, a construct the girth of which is cleverly diminished by a black-painted lower portion. in direct contrast to virtually every other bicycle in the wide specialized range, the manufacturer's name, often writ large, almost looks like an afterthought on the vado. built into the side of the tube is a key-operated lock designed to release the battery from the frame's grip, just ahead of the charging socket. the battery can be charged in situ, or when removed from the bicycle.

specialized turbo vado

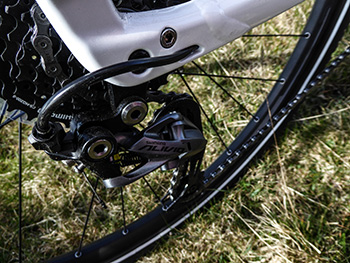

there's a single chainring crank, married to a nine-speed shimano alivio rear dérailleur and 11-36 cassette. changing is managed by a rapid-fire, bar-mounted, right-hand alivio nine-speed gear changer. those gears help power a fairly substantially sized pair of thru-axle wheels, shod with trigger sport, 700 x47mm tyres. stopping is via a pair of tektro hydraulic disc brakes, with specialized's customary larger rotor (180mm) up front reducing to 160mm at the rear. the short stem grasps a 68cm wide handlebar, featuring a 15mm rise and swept back towards the rider. just a tad. the steel-railed specialized canopy sport saddle sits atop a black alloy two-bolt 31.8mm seatpost.

specialized turbo vado

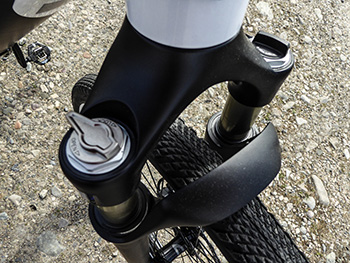

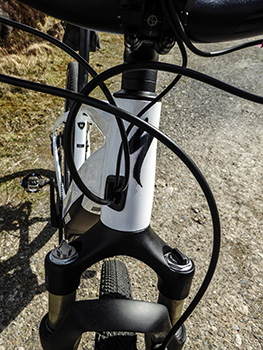

the steel-steerer, front suspension fork is made by suntour, offering up to 50mm of travel and with a lockout dial on the rightmost fork leg, easily reachable while riding. for part of the review, i fitted a pair of crank bros. candy pedals, but in civilian mode, i rode a good few kilometres on the supplied resin platform pedals.

cut from the top of the downtube, between the battery and the head tube, is a shallow slot featuring the on-off button and five green leds displaying the level of battery charge. however, there is no need for the pilot to rely on those green lights to gauge how much power might be left in the tank, as such matters are more clearly handled by the bar mounted, lcd blok display. this slots into a custom bracket; should the display be removed from this housing, the motor is disabled.

specialized turbo vado

the default display shows the chosen power mode (there are three levels on offer, selected via a bar mounted switch), speed, remaining battery level, time of day and a switchable portion that provides trip distance/ride time/odometer, depending on rider choice. the country in which the vado is sold, decides on whether the motor support is either limited to a maximum of 25kph (pedelec), or 48kph (s-pedelec). in the uk, the former reigns. rather obviously, the bike can be ridden faster than 25kph, but from 26kph and above, the motor provides no assistance and you're on your own with that rather heavy (21kg) bike.

specialized turbo vado

going for a ride

after a slight delay, pressing the on/off button on the fuselage lights up the handlebar mounted display, at which point the vado is ready and willing to go. by default, two of the three available levels of motor assistance are engaged at this point; decreasing to one, or increasing to three is achieved by pressing either the + or - buttons on the left-side control switchgear. as a honed, self-respecting athlete, i was less than keen to engage anything above level one, relying on the nine-speed rear cassette to take care of pesky gradients.

however, it would be remiss of me in my position as reviewer to have avoided the two greater levels of support, so rest-assured, purely in the interests of scientific research, i tried the lot.

depending on your more regular style of riding, you might well find, as i did, that you exceed the maximum speed of motor support and end up riding faster than the limiter. this gives the effect of an independent braking system, holding you back with an unseen hand. in essence, so doing rather defeats the point of riding an electrically powered bicycle in the first place, becoming ultimately responsible for powering a heavy bicycle without assistance. therefore, it takes but a few kilometres to gain the mindset akin to that of a passenger, growing quickly accustomed to riding at 25kph no matter whether tail wind assisted or headwind hindered.

specialized turbo vado

in fact, that last statement is somewhat vacuous, for even when faced with a galeforce wind, it remains possible to continue unabated at 25kph, either by increasing the level of motor support, or simply pressing a tad harder on the pedals. the rapid-fire, nine-speed gear comes in remarkably handy as the terrain varies, though changing up the block was pretty fierce on occasion. of course, increasing the motor support drains the battery more quickly, a fact in itself that alters your behaviour as a cyclist.

the bar mounted display shows the graphic equivalent of an aa battery, split into five discrete levels. once the first level has been used up, i immediately became the e-bike equivalent of a clock-watcher, overly concerned that the second level would disappear before i wanted it to. when the third level disappears from view, all of the remaining bike ride is absorbed with mental calculations as to whether home could be reached before i was running on empty. for your information (admit it, you were wondering when i'd get round to it), at level one motor support, i reckoned to get around 15km per battery level, offering an effective range of 75km out and back. increasing the motor support tautologically reduces the bicycle's range.

specialized turbo vado

throughout the review period, i only ever depleted the battery to the point where two levels remained. however, restoring the charge took approximately five hours which, i must confess, was a bit longer than i'd expected.

the need for a key to remove the battery seems a sensible precaution, allaying fears that you might return to a batteryless bike if parked in town. however, i can't help thinking that specialized missed a trick by not having the key enable/disable the electrics entirely. thus, it would be necessary to insert and turn the key to enable the motor; taking the bicycle without a key would restrict any chance of a quick getaway. this might not prevent theft of an expensive bicycle, but it would surely throw another hurdle in the direction of a would-be thief?

specialized turbo vado

at one point during my reviewing schedule, i had need of undertaking a morning ride of 10km for a meeting. had i ridden my specialized 'cross bike - the more usual non e-bike choice - i fear i would have been a touch more perspirational on arrival than desired. riding the vado meant that i arrived, not only punctually, but as cool as the proverbial cucumber. used for its specified purpose as an urban e-bike, this facet of electric riding might well pay great dividends in a close-captioned office environment where the only heat might transpire from a charging battery.

specialized turbo vado

assuming either my calculations to be accurate or when closely proximitous to base, i occasionally switched the motor support up to level three at the foot of any untoward gradient. at such a point, the vado almost rode up the hill on its own and i tend to think this is the most sensible strategy to employ when riding to work, school or the shops. when the road's flat: level one. when the road slides minimally upwards: level two. when there's a real hill: level three. just remember to switch down to a more appropriate support level whenever possible to not only save the battery, but simultaneously indulge in a modest degree of exercise.

specialized turbo vado

after all, that's what cycling's really all about.

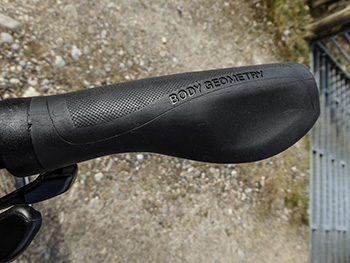

i'm not a fan of flat bars; i never have been. however, currently specialized do not offer an e-bike with drop bars (are you listening mr sinyard?), and it's possible that the average commuter is more comfortable with flat in any case. however, i cannot believe that mr average cycle commuter would be any happier with 68 centimetres of width than was i. there's a small gap in the wall leading to the washingmachinepost bikeshed and prior to riding through said gap, i always switched off the motor to allow unaided navigation via handlebars that were but a few centimetres narrower. navigating rush hour traffic would surely be an easier task with narrower bars?

specialized turbo vado

if this were my bike, i'd cut the bars down.

part of my disdain for flat bars revolves around the upright riding position engendered by such. though i doubt there are such severe headwinds in an urban setting, bolt upright is not the way to scrabble along uiskentuie strand in a stiff breeze. aside from which, sitting upright placed more weight on my posterior and the canopy saddle, centre slot notwithstanding, is not the most comfortable upon which i have ever placed my butt. however, the sturdy 47mm rubber fitted front and rear, ameliorated the sting in the tail to an impressive degree and certainly helped me float over the hundreds of potholes encountered over the course of a day.

in this, they were aided and abetted by those suspension forks on which i'd originally locked out the bounce, as any self-respecting roadie would. however, given the nature of the beast, i opted into the spring after only a few days; after all, it's a heavy bike. if you're going to spend more than £2,000, on a bicycle, it doesn't seem too wrong to use every potential advantage it provides.

specialized turbo vado

the substantial frame of the vado displays none of the ride properties to be found in such as a specialized crux, roubaix or venge, but then that's hardly the point. designed as a means of urban transport, it manages precisely what it says on the tin and does so remarkably well. however, given the difficulty of lifting it in and out of the bikeshed, you'd need either to live on the ground floor, or have somewhere to safely park it at street level. it would be naive to encapsulate the e-bike as the sole vision of the future, but it's definitely one particularly successful vision that offered a bit more fun than i'm currently willing to admit to.

specialized turbo vado 2.0

monday 4 june 2018

twmp ..........................................................................................................................................................................................................

reasons to be gearful

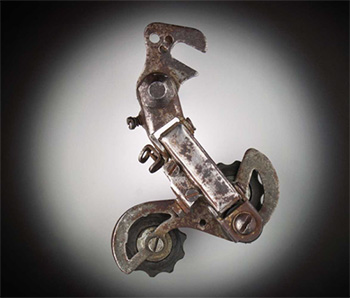

100 derailleurs

'bugsy' berndt was the guy's name. he was a bit taller than me and heading into second year when i arrived in first year. and he had a ten-speed racer; metallic green and red, though for the life of me, i cannot recall what name appeared on the downtube. far less cool, though possibly a tad more pragmatic, my own cycle-to-school transport was a green, raleigh twenty, the latter number referring to the wheel diameter. it could manage but three sturmey archer gears, though it did have mudguards, a hub dynamo and a tartan covered box that affixed to the rear rack and sported a carrying capacity that rivalled that of pickfords furniture removers.

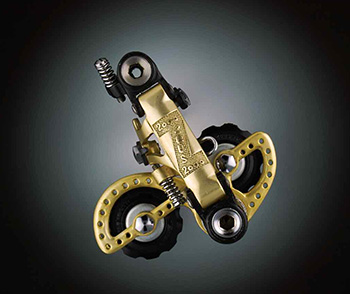

100 derailleurs

a sensible bike.

not unnaturally, however, bugsy's ten-speed racer was an object of desire. while the yobbo kids would dismantle my front light, remove the cover from the tartan box and light matches in the ends of the bar grips, master berndt's bicycle was left well alone (though that could have been more as a result of his aggressive demeanour and muscular build).

when my brother commenced secondary school a couple of year's later, he owned a five-speed racer, two gears closer to bugsy's than my raleigh and but one less estrangement from coolness. when my father and i paid a visit to mr benzie's cycle shop in kyle street, (just past the library), to ask what would be the cost of acquiring ten gears for yours truly, he put paid to any further thoughts by warning that such explicit gearing systems were liable to drop the chain as quickly as you could say disraeli. distraught at this revelation, i plucked up the courage to ask andrew berndt (his 'real' name), if this was a malfeasance that plagued his commute to and from school, he simply grunted and shook his head.

100 derailleurs

many years later, as an independent and allegedly intelligent adult, i purchased my very own ten-speed racer, choosing to remain in the inner ring for weeks due to concern over what might happen to the system when shifting into the outer ring. did the rear dérailleur simply reset itself to first gear? was there any hitherto unknown incantation to be offered prior to flicking that downtube lever? there was, to be perfectly honest, only one way to find out.

yet even nowadays, when my gear changers are at my fingertips on the brake levers, there is no longer any need for careful adjudged shifting and at least two of my fellow pelotonese have electric buttons rather than levers, the actions of that rear dérailleur still seem close to magical. for the chain, comfortably in place over individual sprocket teeth, seems to offer little in the way of resistance to lateral movement, yet providing the average rider several more gear ratios than are truly necessary to get to and from school, work or the shops. try it for yourself; lean the bicycle against the coal bunker and prod at the chain's sideplates in a vain attempt to have it shift upwards to the next sprocket.

100 derailleurs

it simply doesn't work.

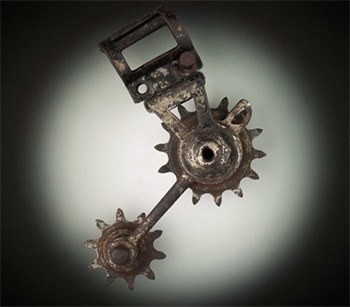

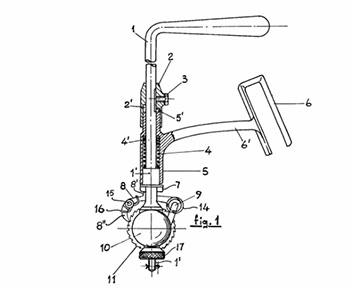

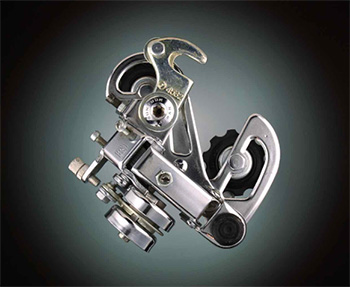

what on earth suggested, to the inventor of the bicycle rear dérailleur, that constructing a device capable of pushing that chain in either direction to achieve that which the prodding finger failed to realise, would end in success? it is truly one of the marvels of the velocipedinal universe, one that has played its part in more than a few remarkable race victories, all the while enduring endless variations and improvements encompassing electrons and even hydraulics.
